Involute Gear Cuters
2021-11-01 15:29:30
jiangxingTools
3090

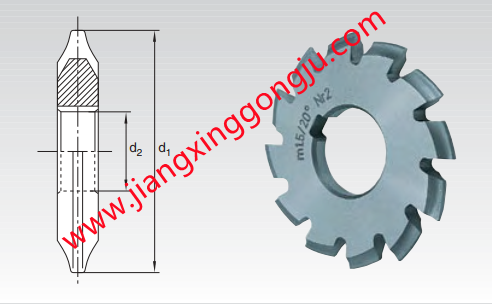

Involute Gear Cuters
for spur gears to module pitch
20° pressure angle
basic profile I to DIN 3972
Material: HSS M2, EMo5Co5

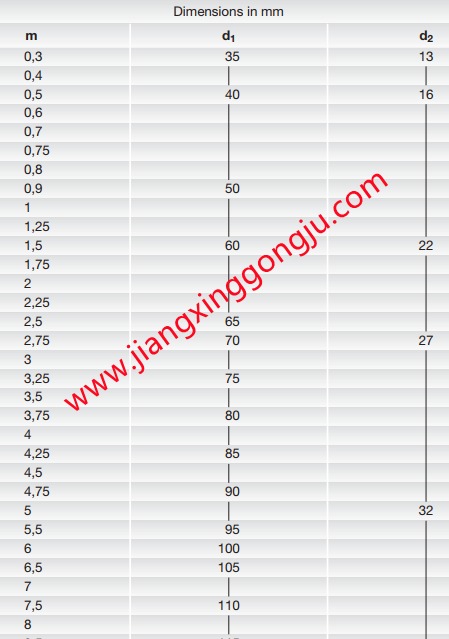

Specifications of Standard Involute Gear Cutters for Spur Gears as following:
If required, we also supply involute gear cutters above module 8 in sets of 15 units, Involute gear cutters are supplied in complete sets as well as singly. When ordering single gear cutters, the cutter number or the number of teeth to be cut must be specified
